Lithium battery
LiFePO4 Battery Bank 12.8V
Battery Bank assembled with enclosure, optional BMS and plug & play interface - for Renewable Energy & Backup Power Applications & replacement of SLA battery
Battery Bank assembled with enclosure, optional BMS and plug & play interface - for Renewable Energy & Backup Power Applications & replacement of SLA battery
Applications
Replacement for Sealed Lead Acid Battery (SLA).

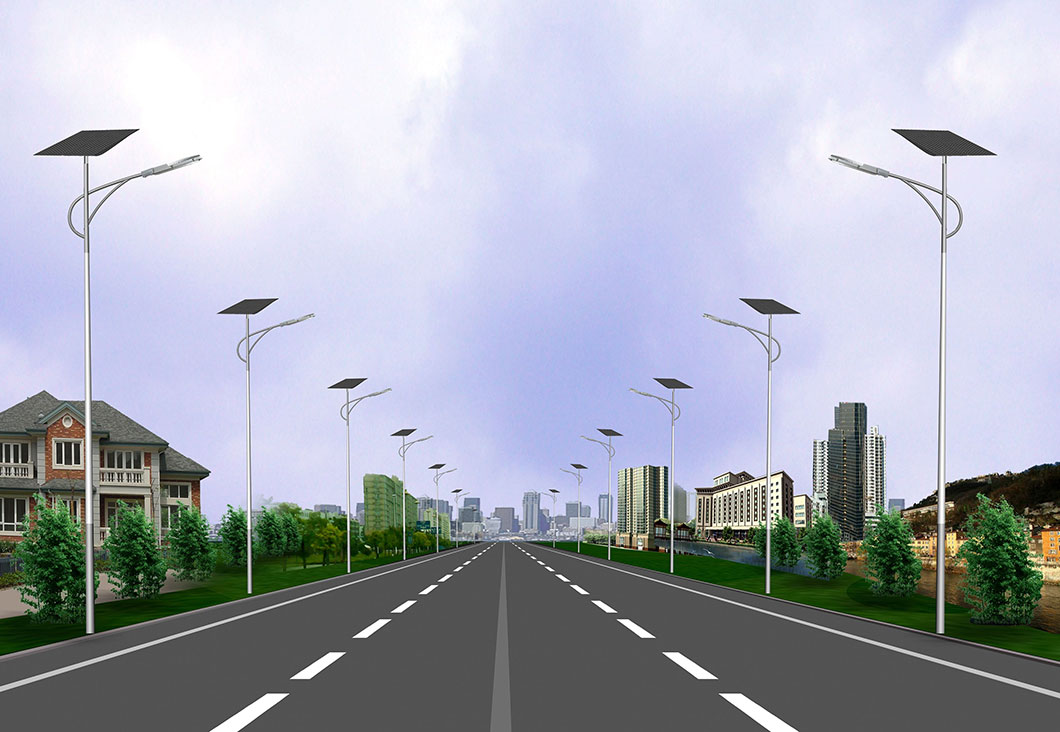

Battery Storage Systems for Solar System such as street lamp.
Replacement for Sealed Lead Acid Battery (SLA).
Battery Storage Systems for Solar System such as street lamp.
| 电池型号Battery Type | 额定电压 Nominal Voltage (V) | 标称容量 Capacity (Ah) | 尺寸 Dimension(±1mm) | 重量 Weight(±5%) | 端子类型 Terminal Type | |||||||
| Length(长) | Width(宽) | Height(高) | Total Height（总高） | |||||||||
| mm | in | mm | in | mm | in | mm | in | |||||
| 12V6AH | 12.8 | 6 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 0.85 | F2 |
| 12V7AH | 12.8 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 0.9 | F2 |
| 12V9AH | 12.8 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 1.6 | F2 |
| 12V17AH | 12.8 | 17 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 2.5 | F3 |
| 12V20AH | 12.8 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 2.7 | F3 |
