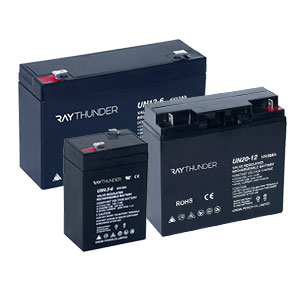

AGM Battery NP Series
Features&Benefits
Using oxygen recombination technology: maintenance-free
Pb-Ca-Sn alloy for plate grids: less gassing and less self-discharging
High quality AGM separator: extend cycle life and prevents micro short circuit
ABS material: increases the strength of battery container. (Flame-retardant ABS is optional)
High purity raw material: ensures low self discharge rate
Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity
Using oxygen recombination technology: maintenance-free
Pb-Ca-Sn alloy for plate grids: less gassing and less self-discharging
High quality AGM separator: extend cycle life and prevents micro short circuit
ABS material: increases the strength of battery container. (Flame-retardant ABS is optional)
High purity raw material: ensures low self discharge rate
Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity
Applications
Engine starting, Communication equipment; Fire & security systems; Uninterruptible power supplies; Telecommunication systems; Electronic cash registers; Electronic test equipment; processor based office machines; Control equipment; Electric powered bicycle and wheelchairs; Geophysical equipment; Marine equipment; Medical equipment; Portable cine & video lights; Solar powered systems; Television& video recorders; Vending machines; Alarm Systems, Computers; Power Tools; Emergency Lighting Systems; Toys; Geophysical Equipment; Vending Machines ; Other standby or primary power supplies.
Engine starting, Communication equipment; Fire & security systems; Uninterruptible power supplies; Telecommunication systems; Electronic cash registers; Electronic test equipment; processor based office machines; Control equipment; Electric powered bicycle and wheelchairs; Geophysical equipment; Marine equipment; Medical equipment; Portable cine & video lights; Solar powered systems; Television& video recorders; Vending machines; Alarm Systems, Computers; Power Tools; Emergency Lighting Systems; Toys; Geophysical Equipment; Vending Machines ; Other standby or primary power supplies.
| 电池型号Battery Type | 额定电压 Nominal Voltage (V) | 标称容量 Capacity (Ah) | 尺寸 Dimension(±1mm) | 重量 Weight(±5%) | 端子类型 Terminal Type | ||||||||
| Length(长) | Width(宽) | Height(高) | Total Height （总高） | (approx) kg | (approx) pound | ||||||||
| mm | in | mm | in | mm | in | mm | in | ||||||
| NP4.5-4 | 4 | 4.5 | 48 | 1.89 | 48 | 1.89 | 102 | 40.2 | 108 | 4.25 | 0.52 | 1.15 | F1 |
| NP4.5-4S | 4 | 4.5 | 48 | 1.89 | 52 | 2.05 | 94 | 3.7 | 99 | 3.9 | 0.52 | 1.15 | F1 |
| NP1.2-6 | 6 | 1.2 | 97 | 3.82 | 24 | 0.94 | 52 | 2.05 | 58 | 2.28 | 0.3 | 0.66 | F1 |
| NP2.0-6 | 6 | 2 | 43 | 1.69 | 37 | 1.46 | 76 | 2.99 | 76 | 2.99 | 0.34 | 0.75 | T5 |
| NP2.8-6 | 6 | 2.8 | 66 | 2.6 | 33 | 1.3 | 97 | 3.82 | 104 | 4.09 | 0.55 | 1.21 | F1 |
| NP3.2-6 | 6 | 3.2 | 134 | 5.28 | 34 | 1.34 | 61 | 2.4 | 67 | 2.64 | 0.63 | 1.39 | F1 |
| NP4-6 | 6 | 4 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.68 | 1.5 | F1 |
| NP4.2-6 | 6 | 4.2 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.72 | 1.59 | F1 |
| NP4.5-6 | 6 | 4.5 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.75 | 1.65 | F1 |
| NP5-6 | 6 | 5 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.8 | 1.76 | F1 |
| NP7-6 | 6 | 7 | 151 | 5.94 | 34 | 1.34 | 94 | 3.7 | 100 | 3.94 | 1.08 | 2.38 | F2 |
| NP8-6 | 6 | 8 | 151 | 5.94 | 34 | 1.34 | 94 | 3.7 | 100 | 3.94 | 1.15 | 2.53 | F2 |
| NP10-6 | 6 | 10 | 151 | 5.94 | 50 | 1.97 | 94 | 3.7 | 100 | 3.94 | 1.5 | 3.31 | F2 |
| NP12-6 | 6 | 12 | 151 | 5.94 | 50 | 1.97 | 94 | 3.7 | 100 | 3.94 | 1.7 | 3.75 | F2 |
| NP100-6 | 6 | 100 | 195 | 7.68 | 170 | 6.69 | 207 | 8.15 | 213 | 8.39 | 16 | 35.3 | F12 |
| NP180-6 | 6 | 180 | 306 | 12 | 168 | 6.61 | 220 | 8.66 | 226 | 8.9 | 26.8 | 59.1 | F12 |
| NP200-6 | 6 | 200 | 306 | 12 | 168 | 6.61 | 220 | 8.66 | 226 | 8.9 | 28.3 | 62.4 | F12 |
| NP300-6 | 6 | 300 | 295 | 11.6 | 178 | 7.01 | 345 | 13.6 | 350 | 13.8 | 47 | 103.6 | F12 |
| NP0.8-12 | 12 | 0.8 | 96 | 3.78 | 25 | 0.98 | 62 | 2.44 | 62 | 2.44 | 0.35 | 0.77 | T13/T9 |
| NP1.2-12 | 12 | 1.2 | 97 | 3.82 | 43 | 1.69 | 52 | 2.05 | 58 | 2.28 | 0.55 | 1.21 | F1 |
| NP2.0-12M | 12 | 1.6 | 150 | 5.9 | 20 | 0.79 | 90 | 3.54 | 90 | 3.54 | 0.68 | 1.5 | T11 |
| NP2-12 | 12 | 2 | 178 | 7.01 | 35 | 1.38 | 61 | 2.4 | 67 | 2.64 | 0.85 | 1.87 | F1 |
| NP2-12S | 12 | 2 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.78 | 1.72 | F1 |
| NP2.3-12 | 12 | 2.3 | 178 | 7.01 | 35 | 1.38 | 61 | 2.4 | 67 | 2.64 | 0.92 | 2.03 | F1 |
| NP2.3-12C | 12 | 2 | 182 | 7.17 | 24 | 0.94 | 61 | 2.4 | 61 | 2.4 | 0.77 | 1.7 | T10 |
| NP2.6-12 | 12 | 2.6 | 178 | 7.01 | 35 | 1.38 | 61 | 2.4 | 67 | 2.64 | 1 | 2.2 | F1 |
| NP2.6-12S | 12 | 2.4 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | 0.84 | 1.85 | F1 |
| NP2.9-12 | 12 | 2.9 | 79 | 3.11 | 55.5 | 2.19 | 98.5 | 3.88 | 104 | 4.09 | 1.2 | 2.64 | F1 |
| NP3.2-12 | 12 | 3.2 | 134 | 5.28 | 67 | 2.64 | 61 | 2.4 | 67 | 2.64 | 1.2 | 2.64 | F1 |
| NP4-12 | 12 | 4 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.37 | 3.02 | F2 |
| NP4-12L | 12 | 4 | 195 | 7.68 | 47 | 1.85 | 71 | 2.8 | 76 | 2.99 | 1.52 | 3.35 | F1 |
| NP4.5-12 | 12 | 4.5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.45 | 3.2 | F2 |
| NP5-12 | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.58 | 3.48 | F2 |
| NP6-12 | 12 | 6 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | 1.66 | 3.66 | F2 |
| NP6.5-12 | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.03 | 4.47 | F2 |
| NP7-12 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.12 | 4.67 | F2 |
| NP7.5-12 | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.2 | 4.85 | F2 |
| NP8-12 | 12 | 8 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.25 | 4.96 | F2 |
| NP9-12 | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | 2.5 | 5.51 | F2 |
| NP10-12 | 12 | 10 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 3.2 | 7.05 | F2 |
| NP10-12S | 12 | 10 | 151 | 5.94 | 65 | 2.56 | 110 | 4.33 | 117 | 4.61 | 2.8 | 6.17 | F2 |
| NP12-12 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 3.4 | 7.49 | F2 |
| NP15-12 | 12 | 15 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5 | 11 | F3 |
| NP17-12 | 12 | 17 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.2 | 11.46 | F3 |
| NP20-12 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 3.57 | 167 | 6.57 | 5.4 | 11.9 | F3 |
| NP22-12 | 12 | 22 | 181 | 7.13 | 77 | 3.03 | 167 | 3.57 | 167 | 6.57 | 5.8 | 12.8 | F3 |
| NP24-12 | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 7.6 | 16.8 | F4 |
| NP24-12S | 12 | 24 | 165 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.17 | 8.3 | 18.3 | F13 |
| NP26-12 | 12 | 26 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8 | 17.6 | F4 |
| NP28-12 | 12 | 28 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.3 | 18.3 | F4 |
| NP33-12 | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.1 | 180 | 7.09 | 10.2 | 22.5 | F11 |
| NP38-12 | 12 | 38 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 12.4 | 27.3 | F11 |
| NP45-12 | 12 | 45 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 13.5 | 29.7 | F11 |
| NP50-12 | 12 | 50 | 250 | 9.84 | 160 | 6.3 | 178 | 7.01 | 197 | 7.76 | 15.5 | 34.2 | F11 |
| NP55-12 | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 212 | 8.35 | 16 | 35.3 | F11 |
| NP65-12 | 12 | 65 | 350 | 13.8 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 19.6 | 43.2 | F11 |
| NP70-12 | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 208 | 8.19 | 212 | 8.94 | 20.5 | 45.2 | F11 |
| NP75-12 | 12 | 75 | 260 | 10.2 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 21.5 | 47.4 | F11 |
| NP80-12 | 12 | 80 | 350 | 13.8 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 22 | 48.5 | F11 |
| NP90-12 | 12 | 90 | 306 | 12.1 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 25.5 | 56.2 | F11 |
| NP95-12 | 12 | 95 | 328 | 12.9 | 171 | 6.74 | 214 | 8.43 | 218 | 8.59 | 27.5 | 60.6 | F12 |
| NP100-12 | 12 | 100 | 328 | 12.9 | 171 | 6.74 | 214 | 8.43 | 218 | 8.59 | 28.2 | 62.2 | F12 |
| NP110-12 | 12 | 110 | 328 | 12.9 | 171 | 6.74 | 214 | 8.43 | 218 | 8.59 | 30 | 66.1 | F12 |
| NP115-12 | 12 | 115 | 328 | 12.9 | 171 | 6.74 | 214 | 8.43 | 218 | 8.59 | 31.5 | 69.4 | F12 |
| NP120-12 | 12 | 120 | 410 | 16.1 | 176 | 6.93 | 227 | 8.94 | 227 | 8.94 | 33.5 | 73.8 | F12 |
| NP125-12 | 12 | 125 | 410 | 16.1 | 176 | 6.93 | 227 | 8.94 | 227 | 8.94 | 35.5 | 78.2 | F12 |
| NP134-12 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 288 | 11.3 | 40 | 88.2 | F12 |
| NP150-12 | 12 | 150 | 482 | 19 | 170 | 6.69 | 242 | 9.53 | 242 | 9.53 | 42 | 92.6 | F12 |
| NP160-12 | 12 | 160 | 482 | 19 | 170 | 6.69 | 242 | 9.53 | 242 | 9.53 | 44.5 | 98.1 | F12 |
| NP180-12 | 12 | 180 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 54.5 | 120.1 | F12 |
| NP200-12 | 12 | 200 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 57.5 | 126.7 | F12 |
| NP205-12 | 12 | 205 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 60 | 132.2 | F12 |
| NP220-12 | 12 | 220 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 62 | 136.6 | F12 |
| NP250-12 | 12 | 250 | 520 | 20.5 | 269 | 10.6 | 220 | 8.6 | 224 | 8.82 | 69.5 | 153.2 | F12 |
